Detection Range 5-10KM 3KW intelligent laser damage system product manual for Border Patrol Firefighting and Wildlife Monitoring

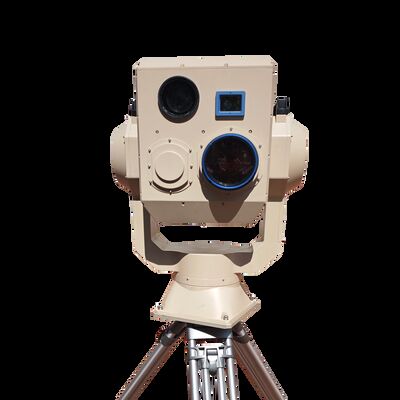

Image Grand : Detection Range 5-10KM 3KW intelligent laser damage system product manual for Border Patrol Firefighting and Wildlife Monitoring

Détails sur le produit:

Place of Origin:	China
Nom de marque:	Hope-Wish
Certification:	CE, FCC, ROHS, ISO9001
Numéro de modèle:	Laser HP-3KW

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	negotiable
Détails d'emballage:	Caisse en bois
Délai de livraison:	60-180
Conditions de paiement:	L / C, D / A, D / P, Western Union, Moneygram
Capacité d'approvisionnement:	50 unités par mois

Contact

Detection Range 5-10KM 3KW intelligent laser damage system product manual for Border Patrol Firefighting and Wildlife Monitoring

description de

Poids:	15KG	Plage de détection:	5-10km
résolution:	1920x1080	Panneau:	N × 360 ° Rotation continue
Type de capteur:	PTZ thermique	Plage de température:	-40 ° C à + 70 ° C
Inclinaison:	-45 ° + 90 °	Distance minimum de foyer:	5-10km
Mettre en évidence:	3KW anti drone laser system , 5-10KM drone detection system , border patrol laser damage system

Product Description:

3KW intelligent laser damage system (hereinafter referred to as damage system), comprehensive use of high energy laser, electronic information, image processing and other technologies, to achieve intelligent recognition, high precision tracking, laser damage of far-field drone targets, balloons, birds, kites and other "low slow small" targets, to achieve rapid target disposal.

Features:

The system can be deployed on a vehicle or fixed on the top of a building. The main functions of the system are as follows:
It can access the target guidance information such as radar, and according to the guidance information, it can quickly locate and image the target.
Able to fast recognize and intelligent track the drone target.
Through control the high energy laser beam on far field, system able to rapid strike down the drone targets.
Simple operation interface improves the work effectiveness of system. The interface able to monitor the system status and control the functions of laser on, laser off, video, and so on.
Simple disassembly, transportation, assembly and adjustment processes. Easy for deployment.

Technical Parameters:

Item	Specifications	Comments
High energy laser emission power	3KW
Beam quality M²	≤1.5
Output fiber length	≥2m
Effective tracking distance	≥600m	Taking DJI "Phantoms" as a typical target, under the condition of weak atmospheric turbulence
Ranging distance	≥500m
Effective damage distance	100~500m
Damage time	5s～15s	Since the laser emitted until the target fall. (time influence by the target distance and atmospheric condition)
Target intelligent detection	Accuracy≥95%	Intelligent identification and tracking of drone targets under complex backgrounds (mountains, trees, buildings, etc.)
Target tracking accuracy	≤15μrad(RMS)
Continuous laser emission time	≥60s
Azimuth angle range	-90°～+90°
Pitch angle range	-10°～+55°
Maximum tracking speed	60°/s
Maximum tracking acceleration	60°/s²
Tracking speed to ensure the accuracy	≥20°/s
Tracking acceleration to ensure the accuracy	≥20°/ s²
Operating temperature	0℃～+40℃	Temperature control using shelter
Storage temperature	-20℃～+60℃	For storage requirement, it is necessary to drain the cooling liquid
Other functions	Receive target guidance information; Feedback target position; Video recording; Remote control; System monitoring; System configuration

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
